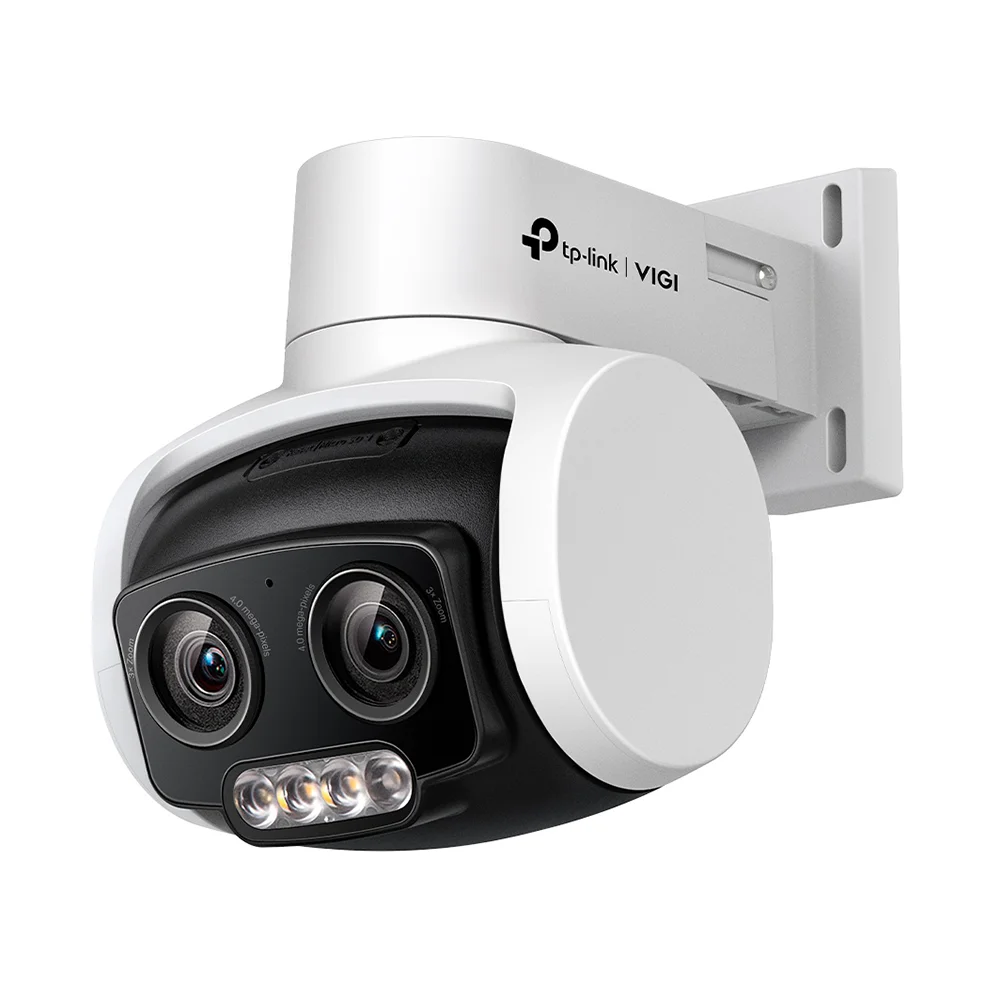

Cámara IP VIGI TP-Link VIGI C540V | Cámara IP Varifocal Tipo PT | Rotativa | ABS | 4MP 2K | IR 30m | 4-12 mm | Full Color
Marca: TP-Link
Categoría: Cámaras IP
SKU: CR-1559
S/ 274.00
En stock
Cámara IP VIGI TP-Link VIGI C540V con 4MP 2K, lente 4-12 mm (zoom mixto), IR 30 m a 850 nm y movimiento pan 0° a 332°, inclinación 0° a 120°. PN: VIGI C540V
Cámara IP VIGI TP-Link VIGI C540V | Cámara IP Varifocal Tipo PT | Rotativa | ABS | 4MP 2K | IR 30m | 4-12 mm | Full Color Cámara IP VIGI TP-Link VIGI C540V con 4MP 2K, lente 4-12 mm (zoom mixto), IR 30 m a 850 nm y movimiento pan 0° a 332°, inclinación 0° a 120° Características principales 4 MP de altísima definición: Los 4 MP ofrecen píxeles más que suficientes para captar algunos de los detalles más sutiles 24 horas a todo color: Captura 24 horas de detalles a todo color, incluso en condicione...
Especificaciones Técnicas
| MARCA | TP-Link |
|---|---|
| PART NUMBER | VIGI C540V |
| MODELO / SERIE | Cámara IP Varifocal Tipo PT |
| TIPO DE PRODUCTO | Cámara IP VIGI |
| CÁMARA | SENSOR DE IMAGEN=1/3” Progressive Scan CMOS; VELOCIDAD DEL OBTURADOR=1/3 to 1/10000 s; OBTURADOR LENTO=Sí; ILUMINACIÓN MÍNIMA=0.005 Lux; 0 Lux with IR/white light; MECANISMO DÍA/NOCHE=IR Cut Filter; SWITCH DÍA/NOCHE=Unified/ Scheduled/ Auto; ZOOM=3x Mixed Zoom |
| LENTES | LONGITUD FOCAL=4-12 mm (Mixed Zoom); APERTURA=F1.6; FOV=Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°; MONTURA DEL LENTE=M12*P 0.5; DISTANCIA DORI=/ 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) / 8 mm Detect: 150 m (493 ft) Observe: 63 m (205 ft) Recognize: 30 m (98 ft) Identify: 15 m (49 ft) |
| PTZ | PAN/TILT RANGE=Pan: 0° to 332°, Tilt: 0° to 120°; PAN/TILT SPEED=Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s; MANUAL CONTROL SPEED=Configurable from 8° to 35°/s; PRESETS=300; PATROL SCAN=8 patrols, up to 8 presets for each patrol; POWER-OFF MEMORY=Sí; Auto restore to previous PTZ and lens status after power failure; PARK ACTION=Sí; Preset; Patrol Scan; 3D POSITIONING=Sí |
| AJUSTE DE ÁNGULO | RANGE=Pan: 0° to 332°, Tilt: 0° to 120° |
| ILUMINADOR | IR LED=Quantity: 1 Range: 30m Wavelength: 850nm; WHITE LED=Quantity: 3 Range: 30m; ILLUMINATOR ON/OFF CONTROL=Auto/Scheduled/Always on/Always off |
| VIDEO | RESOLUCIÓN=2560 X 1440; MAIN STREAM=Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720; SUB-STREAM=Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240; BIT RATE CONTROL=CBR, VBR; COMPRESIÓN DE VIDEO=Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264; H.264 TYPE=High Profile; H.264+=Main Stream Supported; H.265 TYPE=Main Profile; H.265+=Main Stream Supported; VIDEO BIT RATE=Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGEN | IMAGE SETTINGS=Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software; IMAGE ENHANCEMENT=BLC/3D DNR/HLC/SmartIR; WIDE DYNAMIC RANGE=DWDR; SNR=≥ 52 dB; IMAGE PARAMETERS SWITCH=Sí; PRIVACY MASK=Up to 4 Masks; ROI=1 Region; OSD SETTING=Sí |
| AUDIO | COMUNICACIÓN=Two-Way Audio; AUDIO INPUT=Sí; AUDIO OUTPUT=Sí; AUDIO COMPRESSION=Sí; AUDIO SAMPLING RATE=8KHz; ENVIRONMENT NOISE FILTERING=Sí; AUDIO BIT RATE=64 Kbps(G.711 alaw) |
| RED | PROTOCOLO=TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP; ONVIF=Sí; API=Open Network Video Interface (Profile S); SIMULTANEOUS LIVE VIEW=3 Main Streams & 3 Sub-Streams; CLIENT=VIGI App, VIGI Security Manager, Web UI; WEB BROWSER=Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above; CLOUD=Sí; SEGURIDAD=Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARMA Y GESTIÓN DE EVENTOS | SMART EVENT=/ Area Intrusion Detection / Line-Crossing Detection / People Detection / Vehicle Detection / Region Entering Detection / Region Exiting Detection / Object Abandoned Detection / Object Removal Detection / Abnormal Sound Detection; BASIC EVENT=/ Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) / Video Tampering Detection / Exception ( Illegal Login); ALARM LINKAGE=Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing; NOTIFICACIÓN DE SALIDA=Envío de mensajes |
| INTERFACES | NETWORK INTERFACE=1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE; RESET BUTTON=Sí; ALIMENTACIÓN=DC Power Port; ON-BOARD STORAGE=Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB; BUILT-IN MICROPHONE=Sí; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera; BUILT-IN SPEAKER=Sí |
| GENERAL | TEMP. FUNCIONAMIENTO=-30–60 °C; TEMP. ALMACENAMIENTO=-40–60 °C; HUMEDAD FUNCIONAMIENTO=95% or Less (Non-Condensing); HUMEDAD ALMACENAMIENTO=95% or Less (Non-Condensing); MATERIAL=Plastic; PESO NETO=0.43 Kg; PESO BRUTO=0.66 Kg; FUENTE=12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W; CONSUMO MÁXIMO DE ENERGÍA=Máximo: 14 W Típico (Modo Día): 2.9 W Típico (Modo Noche con LED IR): 5.7 W Típico (Modo Noche con LED Blanco): 6.1 W; PROTECTION=IP66; DIMENSIONES DEL PRODUCTO=107x 136x 139 mm; CERTIFICACIONES=CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
