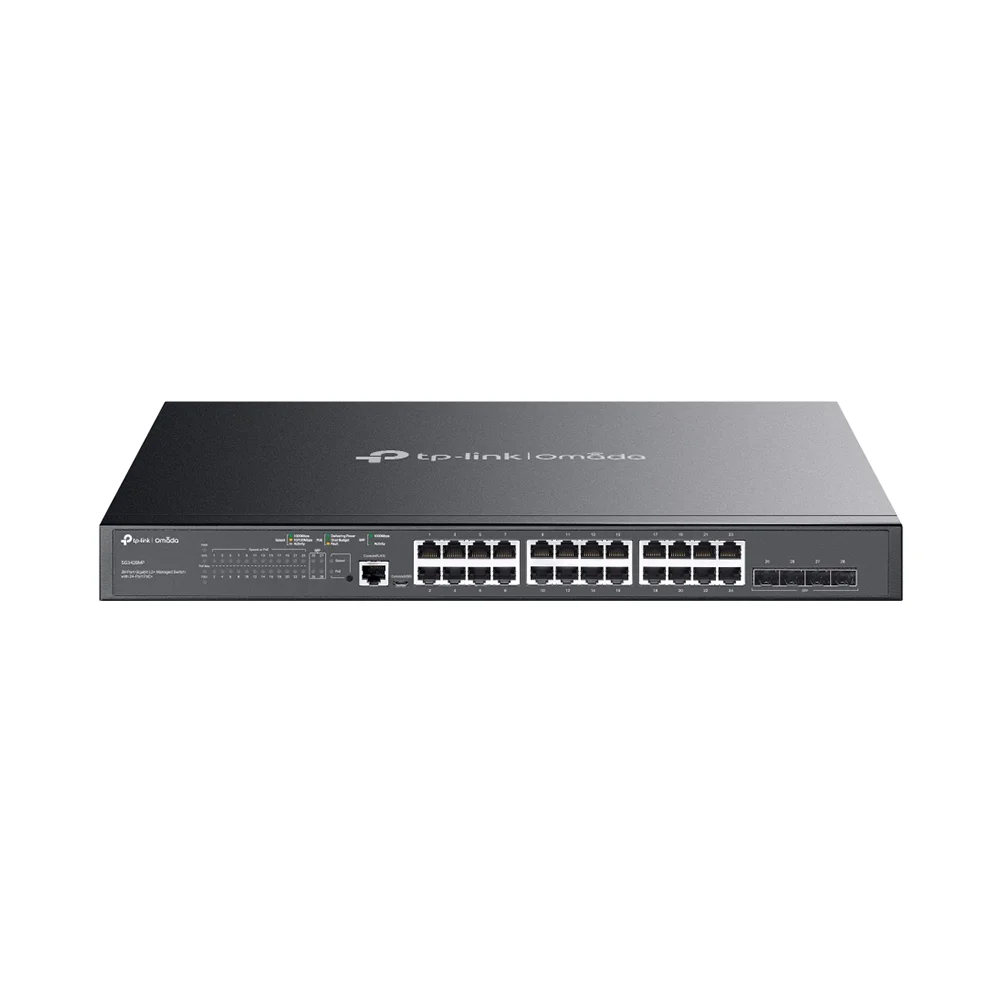

Switch PoE administrable Omada TP-Link SG3428MP | Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Marca: TP-Link
Categoría: Switches PoE
SKU:
Consultar precio
En stock
Switch PoE administrable Omada TP-Link SG3428MP con 24 puertos RJ45 Gigabit PoE+ + 4 SFP Gigabit, 24 puertos PoE+ 802.3af/at, presupuesto PoE de 384 W y capacidad de conmutación 56 Gbps. PN: SG3428MP
Switch PoE administrable Omada TP-Link SG3428MP | Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ Switch PoE administrable Omada TP-Link SG3428MP con 24 puertos RJ45 Gigabit PoE+ + 4 SFP Gigabit, 24 puertos PoE+ 802.3af/at, presupuesto PoE de 384 W y capacidad de conmutación 56 Gbps Características principales 24 Gigabit 802.3af/at PoE+ ports and 4 Gigabit SFP slots 384 W total PoE budget with hasta 30 W PoE output per port Centralized cloud management via the web or the Omada app Sta...
Especificaciones Técnicas
| MARCA | TP-Link |
|---|---|
| PART NUMBER | SG3428MP |
| MODELO / SERIE | Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ |
| TIPO DE PRODUCTO | Switch PoE administrable Omada |
| CARACTERÍSTICAS DE HARDWARE - INTERFAZ | / 24x 10/100/1000 Mbps RJ45 PoE+ Ports / 4x Gigabit SFP Slots / 1x RJ45 Console Port / 1x Micro-USB Console Port |
| CARACTERÍSTICAS DE HARDWARE - VENTILADORES | 2 |
| CARACTERÍSTICAS DE HARDWARE - CERRADURA DE SEGURIDAD FÍSICA | Sí |
| CARACTERÍSTICAS DE HARDWARE - FUENTE DE ALIMENTACION | 100-240 V AC~50/60 Hz |
| CARACTERÍSTICAS DE HARDWARE - PUERTOS POE | / Standard: 802.3at/af compliant / PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port) / Power Budget: 384 W* |
| CARACTERÍSTICAS DE HARDWARE - DIMENSIONES | 17.3x13.0x1.7 in (440x330x44 mm) |
| CARACTERÍSTICAS DE HARDWARE - MONTAJE | Rack Mountable |
| CARACTERÍSTICAS DE HARDWARE - CONSUMO MÁXIMO DE ENERGÍA | 480.1 W (110 V/60 Hz) (with 384 W PD connected) |
| CARACTERÍSTICAS DE HARDWARE - DISIPACIÓN MÁXIMA DE CALOR | 1637.14 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| RENDIMIENTO - CAPACIDAD DE CONMUTACION | 56 Gbps |
| RENDIMIENTO - TASA DE REENVÍO DE PAQUETES | 41.66 Mpps |
| RENDIMIENTO - TABLA MAC | 16K |
| RENDIMIENTO - PAQUETES DE MEMORIA DE BÚFER | 12 Mbit |
| RENDIMIENTO - JUMBO FRAME | 9 KB |
| CARACTERÍSTICAS DE SOFTWARE - CALIDAD DE SERVICIO | / 8 priority queues / 802.1p CoS/DSCP priority / Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR / Bandwidth Control: Port/Flow based Rating Limiting / Smoother Performance / Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| CARACTERÍSTICAS DE SOFTWARE - CARACTERÍSTICAS DE L2 Y L2 + | / 128 IP Interfaces: Support IPv4/IPv6 Interface / Static Routing: 48 IPv4/IPv6 Static Routes / Static ARP: 128 static entries / 512 ARP Entries / Proxy ARP / Gratuitous ARP / DHCP Server / DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay / DHCP L2 Relay / Link Aggregation / Spanning Tree Protocol / Loopback Detection / 802.3x Flow Control / Mirroring / Device Link Detect Protocol (DLDP) |
| CARACTERÍSTICAS DE SOFTWARE - L2 MULTICAST | / Supports 511 (IPv4, IPv6) IGMP groups / IGMP Snooping / IGMP Authentication / Multicast VLAN Registration (MVR) / MLD Snooping / Multicast Filtering: 256 profiles and 16 entries per profile |
| CARACTERÍSTICAS DE SOFTWARE - CARACTERÍSTICAS AVANZADAS | / Automatic Device Discovery / Batch Configuration / Batch Firmware Upgrading / Intelligent Network Monitoring / Abnormal Event Warnings / Unified Configuration / Reboot Schedule ISP Features **: / L2PT (Layer 2 Protocol Tunneling) / Device Link Detect Protocol (DLDP) / PPPoE ID Insertion / ERPS / 802.3ah Ethernet Link OAM / DDM / sFlow |
| CARACTERÍSTICAS DE SOFTWARE - VLAN | / VLAN Group: Max 4K VLAN Groups / 802.1q Tagged VLAN / MAC VLAN: 30 Entries / Protocol VLAN: Protocol Template 16, Protocol VLAN 16 / Private VLAN / GVRP / VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ / Voice VLAN |
| CARACTERÍSTICAS DE SOFTWARE - LISTA DE CONTROL DE ACCESO | / Time-based ACL / MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type / IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority / Combined ACL / Packet Content ACL / IPv6 ACL / Policy: Mirroring, Redirect, Rate Limit, QoS Remark / ACL applies to Port/VLAN |
| CARACTERÍSTICAS DE SOFTWARE - SEGURIDAD | / IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries / IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries / DoS Defend / DHCP Filter / Static/Dynamic Port Security: Up to 64 MAC addresses per port / Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode / 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support / AAA (including TACACS+) / Port Isolation / Secure web management through HTTPS with SSLv3/TLS 1.2 / Secure Command Line Interface (CLI) management with SSHv1/SSHv2 / IP/Port/MAC-based access control |
| CARACTERÍSTICAS DE SOFTWARE - IPV6 | / IPv6 Dual IPv4/IPv6 / Multicast Listener Discovery (MLD) Snooping / IPv6 ACL / IPv6 Interface / Static IPv6 Routing / IPv6 neighbor discovery (ND) / Path maximum transmission unit (MTU) discovery / Internet Control Message Protocol (ICMP) version 6 / TCPv6/UDPv6 / IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| CARACTERÍSTICAS DE SOFTWARE - MIBS | / MIB II (RFC1213) / Bridge MIB (RFC1493) / P/Q-Bridge MIB (RFC2674) / Radius Accounting Client MIB (RFC2620) / Radius Authentication Client MIB (RFC2618) / Remote Ping, Traceroute MIB (RFC2925) / Support TP-Link private MIBs / RMON MIB(RFC1757, rmon 1,2,3,9) |
| ADMINISTRACIÓN - OMADA APP | Sí. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| ADMINISTRACIÓN - CENTRALIZED MANAGEMENT | / Omada Cloud-Based Controller / Omada Hardware Controller / Omada Software Controller |
| ADMINISTRACIÓN - CLOUD ACCESS | Sí. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| ADMINISTRACIÓN - ZERO-TOUCH PROVISIONING | Sí. Requiring the use of Omada Cloud-Based Controller |
| ADMINISTRACIÓN - MANAGEMENT FEATURES | / Web-based GUI / Command Line Interface (CLI) through console port, telnet / SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) / SDM Template / DHCP/BOOTP Client / 802.1ab LLDP/LLDP-MED / DHCP AutoInstall / Dual Image, Dual Configuration / CPU Monitoring / Cable Diagnostics / EEE / Password Recovery / SNTP / System Log |
| OTROS - CERTIFICACION | CE, FCC, RoHS |
| OTROS - REQUISITOS DEL SISTEMA | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux |
| OTROS - AMBIENTE | / Operating Temperature: 0–45 °C (32–113 °F); / Storage Temperature: -40–70 °C (-40–158 °F) / Operating Humidity: 10–90% RH non-condensing / Storage Humidity: 5–90% RH non-condensing |
